Deep Radio¶
Deep Radio is an SDR based platform, designed:
- To teach and learn the fundamentals of signal processing and wireless communications
- To process real-time signals
- To develop applications of deep learning in wireless domain
Outcomes¶
Undergraduate/Postgraduate Laboratory Experiments¶
Deep Radio supports hands-on laboratory experiments for the following courses:
- Digital Signal Processing (DSP)
- Analog Communications
- Digital Communications
- Wireless Communications
- Machine Learning for Wireless Communications
Undergraduate/Postgraduate Thesis Projects¶
Deep Radio serves as an ideal platform for:
- B.E./B.Tech Final Year Projects
- M.E./M.Tech Dissertation Projects
- M.S. Research Projects
- Ph.D. Research and Prototype Development
Technical Specifications¶
| Feature | DeepRadio | DeepRadio Pro | ||
|---|---|---|---|---|
| Transmitter | Receiver | Transmitter | Receiver | |
| Components | Radio Unit Monitor Keyboard & Mouse |
Radio Unit Monitor Keyboard & Mouse |
Radio Unit Monitor Keyboard & Mouse |
Radio Unit Monitor Keyboard & Mouse |
| Memory | 128 GB SSD 8 GB RAM |
128 GB SSD 8 GB RAM |
128 GB SSD 16 GB RAM |
128 GB SSD 16 GB RAM |
| Frequency Range | 50 MHz - 6 GHz | 50 MHz - 1700 MHz | 50 MHz - 6 GHz | 50 MHz - 6 GHz |
| Coverage Range | 50 feet in LoS conditions | - | 20 MS/s | - |
| Max. Sampling Rate | 20 MS/s | 2.4 MS/s | 20 MS/s | 20 MS/s |
| No. of Antennas | 1 | 1 | TBD | TBD |
| Capability | Transmission + Reception | Reception | Transmission + Reception | Reception |
| Programming Language & Tools | Python, C, GNU Radio | Python, C, GNU Radio | Python, C, GNU Radio | Python, C, GNU Radio |

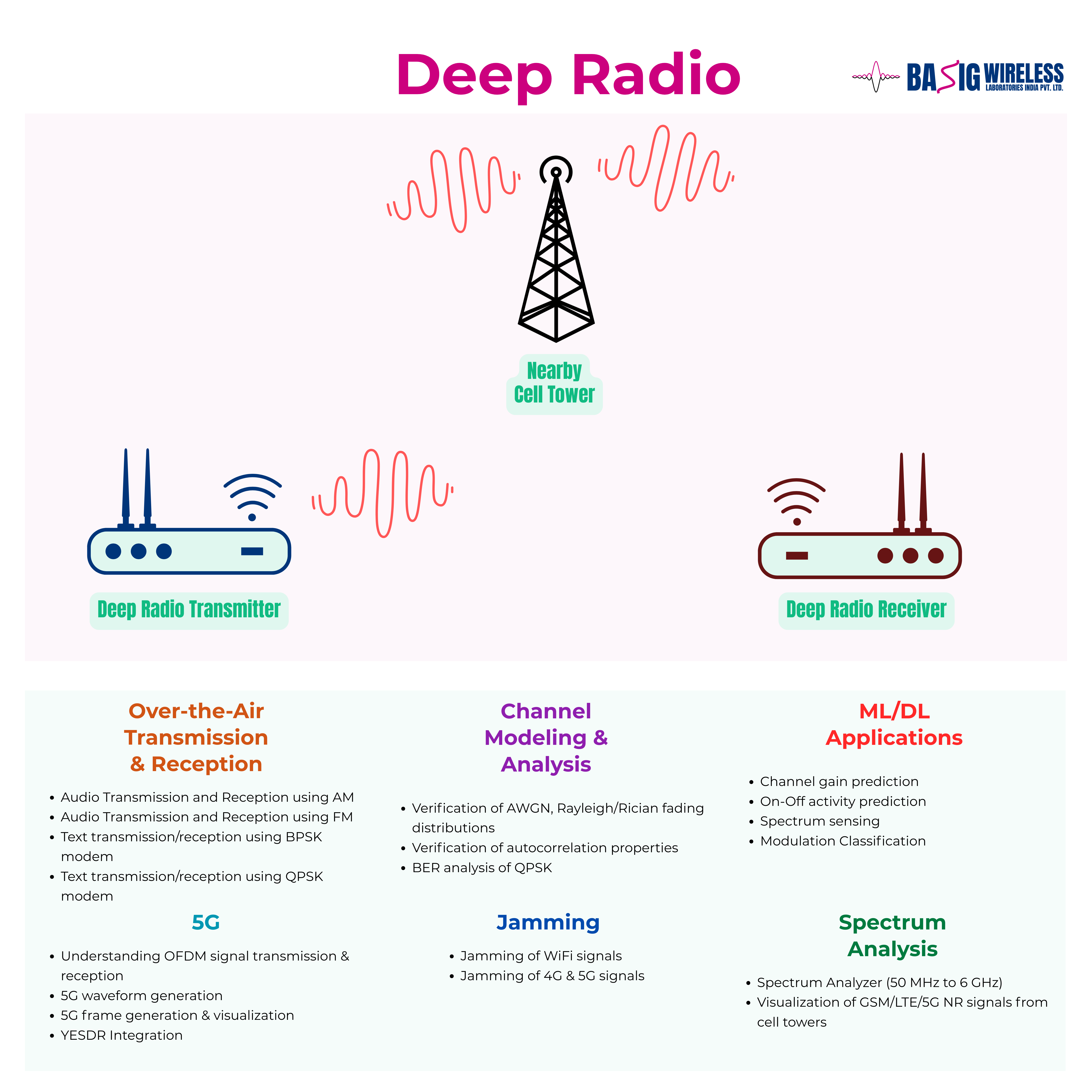

Deep Radio Capabilities
Sample Experiments
- 2G, 3G, 4G Live Spectrum/Bands monitoring
- Live monitoring of GSM and 4G LTE stations
- Over-the-air transmission and reception using BPSK and QPSK Modems
- Verification of AWGN and small-scale fading channel distributions
- Verification of Autocorrelation Properties
- In spectrum to capture and visualize GSM and LTE signals
- OFDM Transmission and analysis
- Processing GSM and LTE signals
- Live AM and FM transmission and reception
- Jammer for Cellular and WiFi Channels
- Energy detection-based spectrum sensing
- Spectrum analysis from 100MHz to 6GHz
- ML based Spectrum activity Prediction
- ML-DL based Modulation Classification(BPSK,QPSK,GMSK,16QAM,64QAM,etc.)
- 5G Signal Generation and Transmission

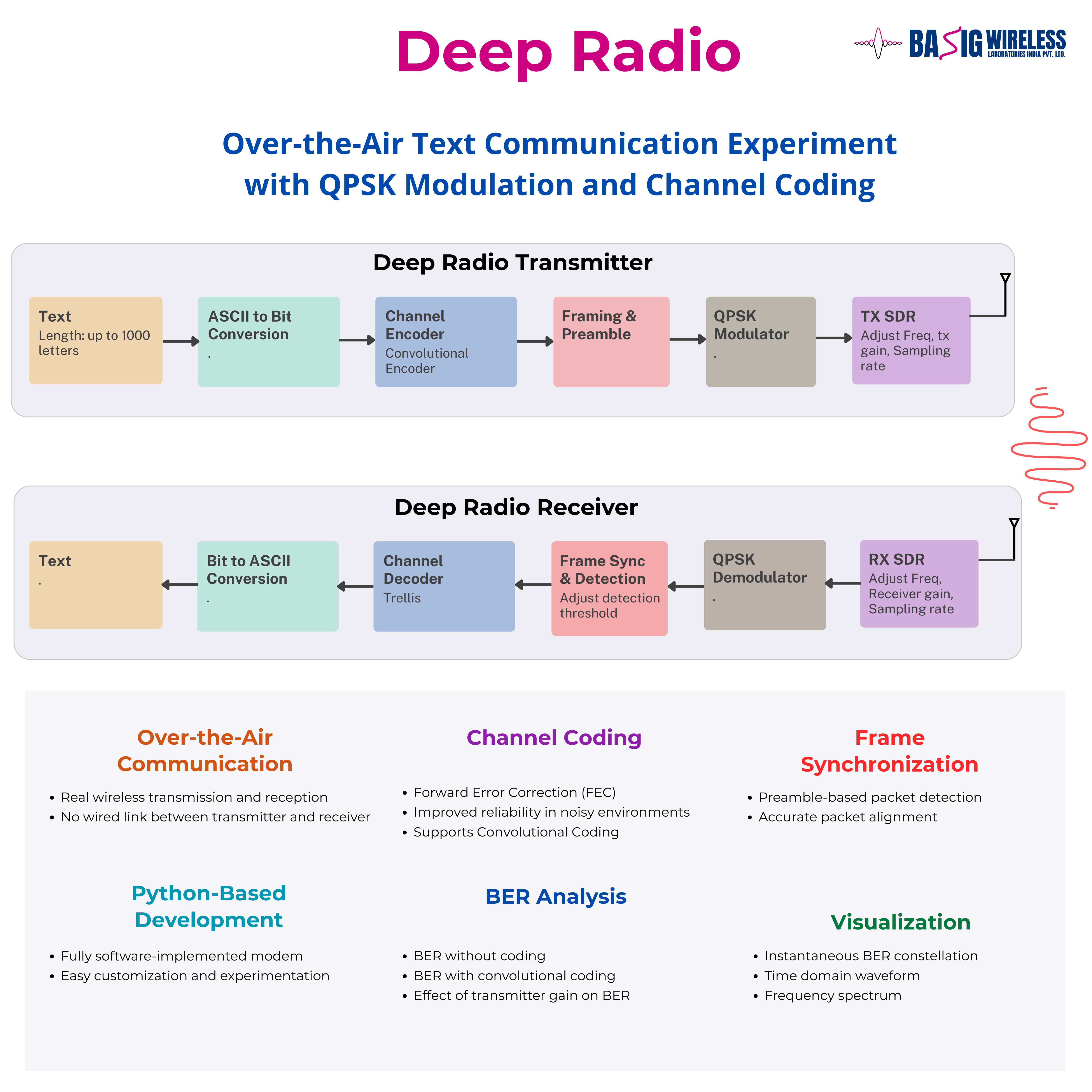

Over-the-Air Text Communication using QPSK Modulation and Channel Coding
Demos:¶
Click here to view Modulation Classification Using Deep Radio¶

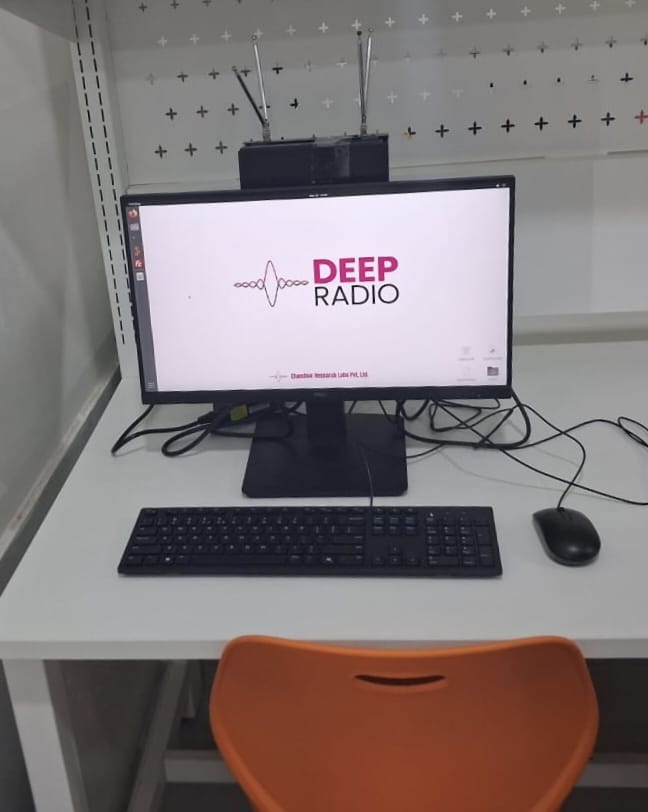

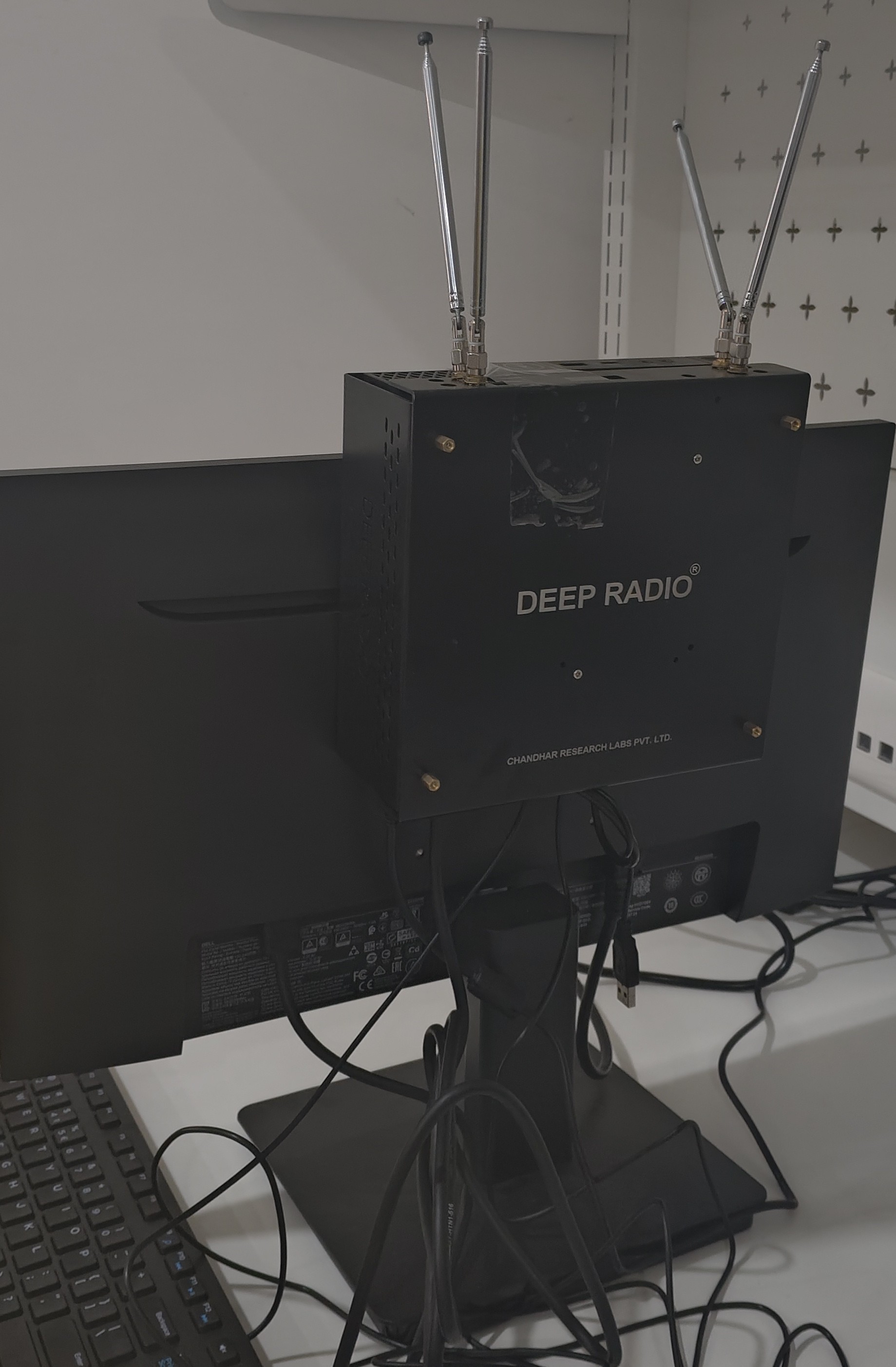

Product¶
Click on images to view larger.
Videos¶
To buy
For purchase, pricing, and demos, contact:
Email: sales@basigwireless.com
Kindly mention the product name in your message.
